BURN YA6C2L
MFG #YA6C2L
UPC #78181050185
SKU #4196822
30 in Stock
Special Order Item. Minimum purchase may be required.
More available 03/08/2026
$6.99/EA
Product description
BURN YA6C2L 6STR CU 2-HOLE SHORT 1/4

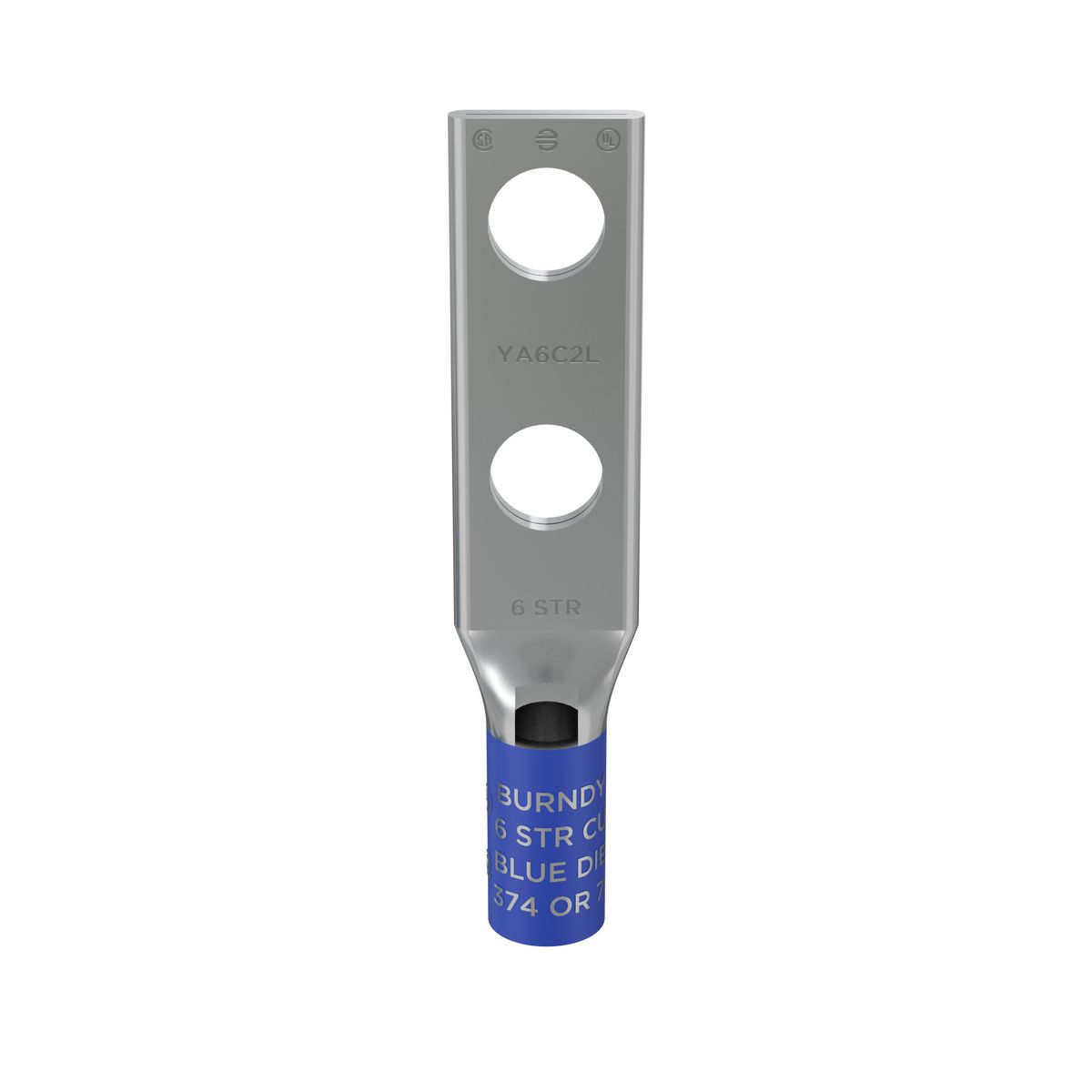

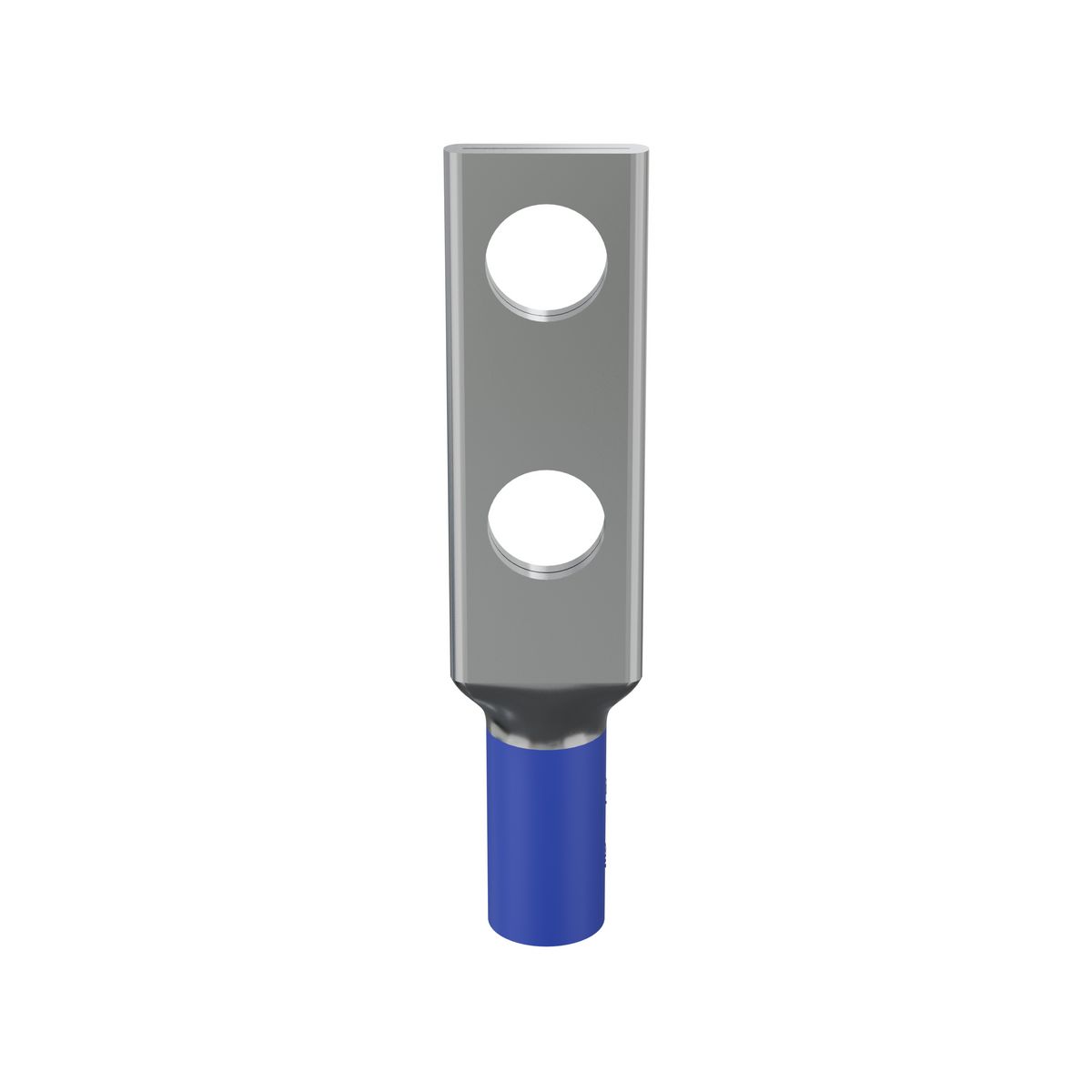

BURNDY® HYLUG™ Compression Connector Lug, 2-Hole, Series: YA-C-2L, Stranded Copper Conductor, 6 AWG Conductor, Die Code: 7/374, 600 VAC to 35 kV, 1/4 in Stud, Straight Tongue, 0.45 in W x 0.08 in THK Tongue, 2.01 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.29 in OD x 0.54 in L Barrel, 5/8 in L Wire Strip, 5/8 in Stud Hole Spacing, Electro-Tin Plated, 90 deg C, Copper, Blue
BURNDY® HYLUG™ Compression Connector Lug, 2-Hole, Series: YA-C-2L, Stranded Copper Conductor, 6 AWG Conductor, Die Code: 7/374, 600 VAC to 35 kV, 1/4 in Stud, Straight Tongue, 0.45 in W x 0.08 in THK Tongue, 2.01 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.29 in OD x 0.54 in L Barrel, 5/8 in L Wire Strip, 5/8 in Stud Hole Spacing, Electro-Tin Plated, 90 deg C, Copper, Blue
- For code conductor and wire termination
- BURNDY® HYLUG™ Compression Connector Lug, 2-Hole, Series: YA-C-2L, Stranded Copper Conductor, 6 AWG Conductor, Die Code: 7/374, 600 VAC to 35 kV, 1/4 in Stud, Straight Tongue, 0.45 in W x 0.08 in THK Tongue, 2.01 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.29 in OD x 0.54 in L Barrel, 5/8 in L Wire Strip, 5/8 in Stud Hole Spacing, Electro-Tin Plated, 90 deg C, Copper, Blue
- LUG COMPRESSION 6AWG STRD COPPER
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|CSA Certified|PROP65: This product can expose you to chemicals including Lead and Lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL 467A/467B
- Brand: BurndyApplication: Wire TerminationCable Size: 6 AWGCountry of Origin: USMaterial: CopperMounting: 5/8 IN Stud Hole SpacingNumber of Holes: 2Standard: UL 486A-486BStud Size: 0.25 inSub Brand: HYLUGType: Standard Barrel, Tin PlatedVoltage Rating: 35 kV
