BURN KSU25
MFG #KSU25
UPC #78181003625
SKU #23228
56 in Stock
Stock Item
More available 03/07/2026
$14.26/EA
Product description

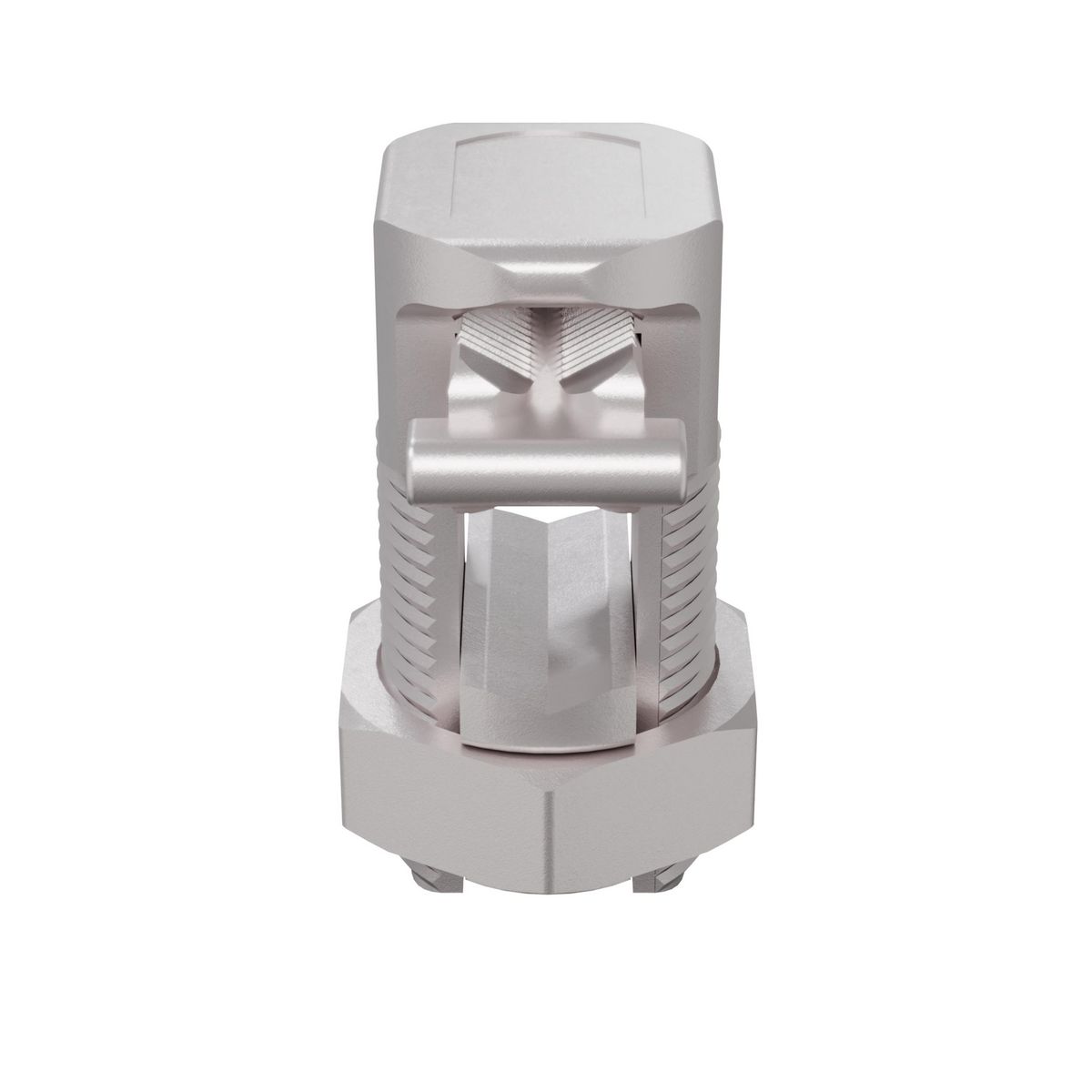

BURN KSU25 2-1/0AWG SPLIT BOLT CONN CU/AL
BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 3 to 1/0 AWG, 10 AWG to 3/8 in Conductor, 1.77 in Length, 0.7 in Width, 385 in-lb, Copper Alloy, Tin Coated
BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 3 to 1/0 AWG, 10 AWG to 3/8 in Conductor, 1.77 in Length, 0.7 in Width, 385 in-lb, Copper Alloy, Tin Coated
- All combinations of copper, aluminum, ACSR, AAAC, 5005 and steel
- BURNDY® SERVIT® Split Bolt Connector, Universal, Series: KSU, 1 Conductors, 3 to 1/0 AWG, 10 AWG to 3/8 in Conductor, 1.77 in Length, 0.7 in Width, 385 in-lb, Copper Alloy, Tin Coated
- Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap conductors
Use of PENETROX™ joint compound recommended with aluminum and ACSR
Conductor type - run ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, tap - ACSR, 5005, AAAC, commercial stranded aluminum, commercial stranded and solid copper, steel (nominal diameter)
0.93 in across flats
10 to 1/0 AWG of copper tap range, 2 AWG to 1/0 copper stranded run (range), 22 AWG of copper solid tap (range) and copper solid run size (range)
High conductivity copper alloy
3 to 1/0 AWG main/primary, 10 AWG to 3/8 in tap/secondary
- CONNECTOR BOLT SPLIT 1 1.77IN COPPER ALY
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Brand: BurndyApplication: For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And SteelConductor Range (Main/Primary): 3 (6-1) - 1/0 AWGConductor Range (Tap/Secondary): 10 AWG - 3/8 INCountry of Origin: USFinish: Tin PlatedMaterial: CopperNumber of Conductors/Ports (Tap/Sec: 1Standard: Buy American Act Compliant (All status valid till December 2024)Sub Brand: UNIVERSAL SERVITType: KSU, Universal
