MFG #3232TRLA
UPC #78500724006
SKU #3832416
940 in Stock
Stock Item
More available 12/20/2025 and 01/08/2026
$2.35 per EA (1) / EA
Product description

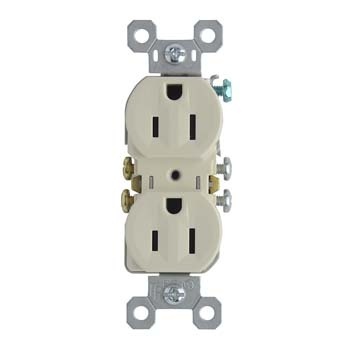

PS 3232TRLA 15AMP LIGHT ALMOND 125VAC NEMA5-15R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX TAMPER RESISTANT RECEPTACLE
Pass & Seymour® TradeMaster® Straight Blade Receptacle, Duplex Grounding Tamper Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, Side Wire Terminal, Thermoplastic, Light Almond, 4.2 in H x 1.32 in W x 1 in D Dimensions
Pass & Seymour® TradeMaster® Straight Blade Receptacle, Duplex Grounding Tamper Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, Side Wire Terminal, Thermoplastic, Light Almond, 4.2 in H x 1.32 in W x 1 in D Dimensions
- Pass & Seymour® TradeMaster® Straight Blade Receptacle, Duplex Grounding Tamper Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Residential Grade, Side Wire Terminal, Thermoplastic, Light Almond, 4.2 in H x 1.32 in W x 1 in D Dimensions
- Extra long strap
Quick-loop wire looping aid
Long term blade retention
Longer tri-drive screws for easier 12 AWG looping
Extra large circuit break OFF tab
Side access push wire release
Ultrasonic welding of face to back body
Side wire accepts 14 to 12 AWG solid wire
Push wire accepts 14 AWG solid only
Superior protection than traditional outlet caps or protection plates
Low profile face
Traditional contoured face (3232 models)
Self-grounding models provide automatic ground clip
Internal shutter system
It protects children with its patented shutter system that helps prevent improper insertion of foreign objects
It has high impact resistant thermoplastic construction and superior protection than traditional outlet caps or protection plates
Wall mounting
4 AWG wire size
- RECEPTACLE BL STR 125VAC 15A 2 3 SIDE W
- Product Catalog Page(s)
Specification Sheet
- UL 498|CSA C22.2 No. 42|cULus Listed
- Brand: Pass & Seymour LegrandAmperage Rating: 15Application: Residential/CommercialColor: Light AlmondConnection: GroundingCountry of Origin: CNMaterial: ThermoplasticMounting: WallNEMA Rating: 5-15RNumber of Poles: Double PoleNumber Of Wires: 3Size: 4.2 inSpecial Features: Internal shutter system, side wire, low profile faceStandard: UL, CULUS, UL 498Sub Brand: Pass & SeymourType: OutletVoltage Rating: 125Wire Size: 14 - 12 AWG
