MERSEN A15QS150-4
MFG #A15QS150-4
UPC #78200128777
SKU #1387267
8 in Stock
Special Order Item. Minimum purchase may be required.
More available 01/11/2026
$183.24 per EA (1) / EA
Product description

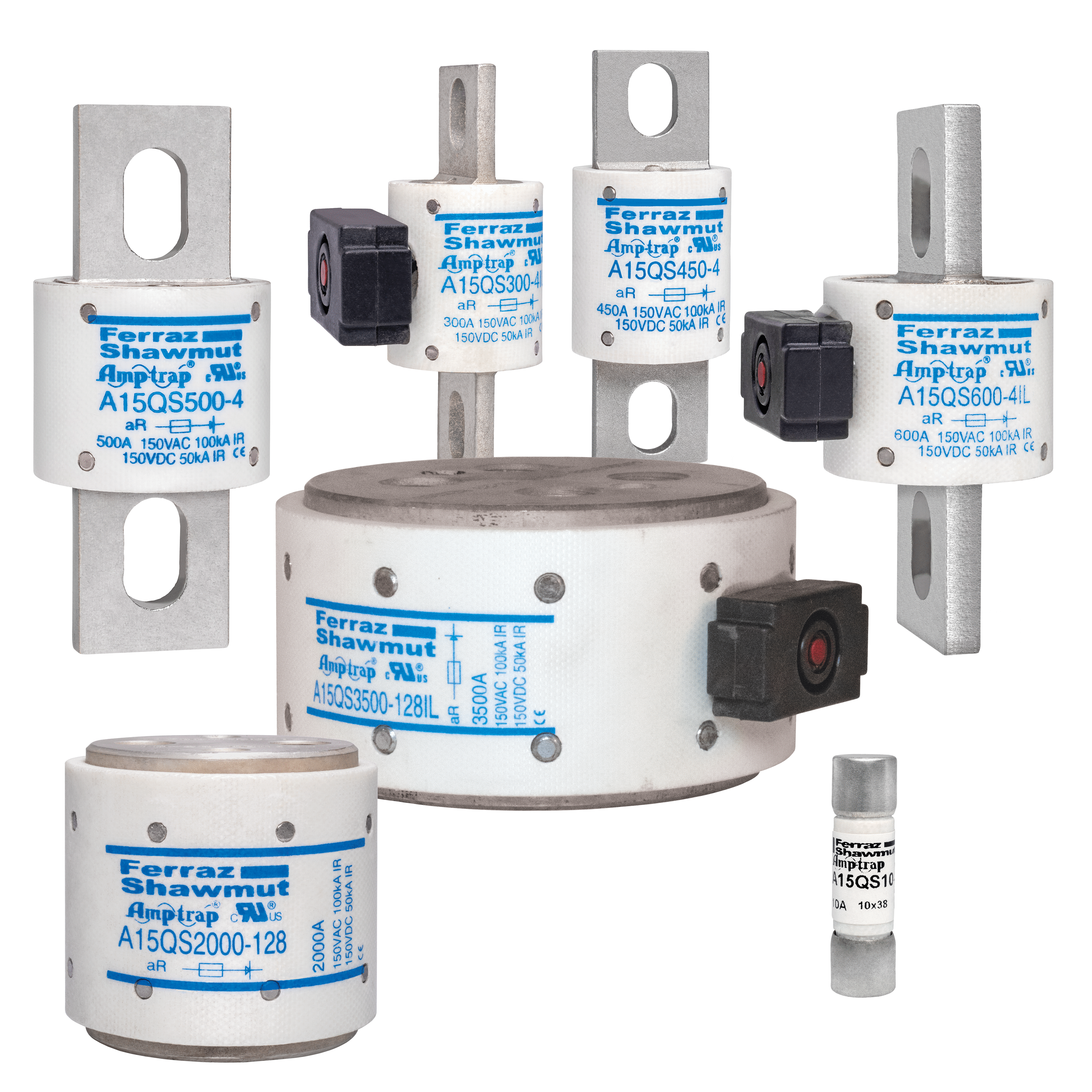

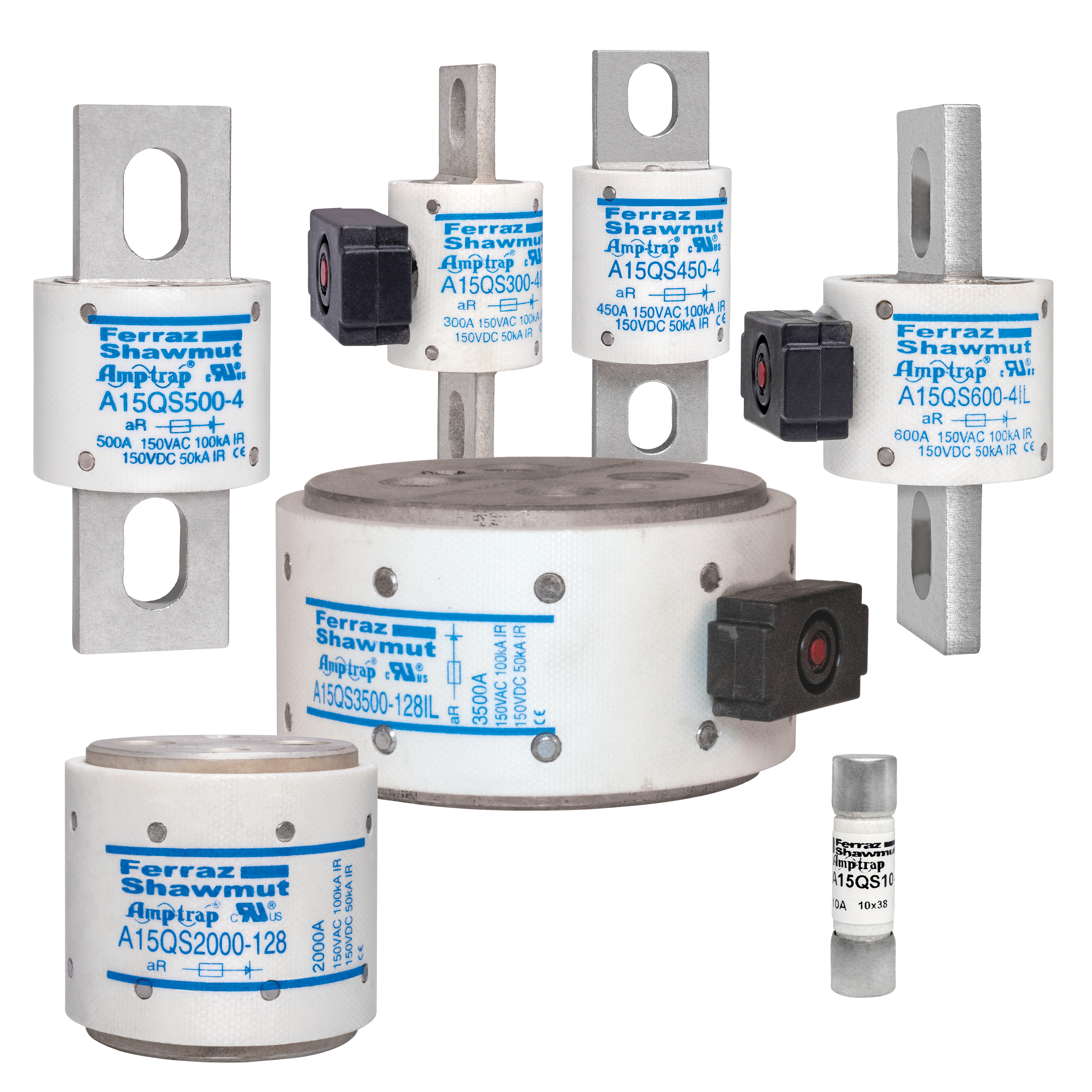

MERSEN A15QS150-4 150V 150A SEMICOND FUSE
Mersen AMP-TRAP® High Speed Fuse, Current Limiting Fast Acting Round Style Semi-Conductor, Series: A15QS, Non-Rejection, 150 A, 150 VAC, 50/100 kA Interrupt, Blade Terminal, Bolted Mounting, Cylindrical/Round Body, Single Element, Ceramic, 1.13 in Dia x 2.66 in L Body
Mersen AMP-TRAP® High Speed Fuse, Current Limiting Fast Acting Round Style Semi-Conductor, Series: A15QS, Non-Rejection, 150 A, 150 VAC, 50/100 kA Interrupt, Blade Terminal, Bolted Mounting, Cylindrical/Round Body, Single Element, Ceramic, 1.13 in Dia x 2.66 in L Body
- For protection of AC/DC drives, UPS, rectifiers and other equipment of 150 VAC or less
- Mersen AMP-TRAP® High Speed Fuse, Current Limiting Fast Acting Round Style Semi-Conductor, Series: A15QS, Non-Rejection, 150 A, 150 VAC, 50/100 kA Interrupt, Blade Terminal, Bolted Mounting, Cylindrical/Round Body, Single Element, Ceramic, 1.13 in Dia x 2.66 in L Body
- Controlled arc voltage reduces stress to circuit components during fuse clearing
Choice of mounting types provides options for unique termination requirements
Tin plated brass, sliver plated brass contact
- FUSE SP HIGH 150A 150VAC 50/100KA
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|UL 198L Parameters (1-4000A)|UL Listed File No. E60314 Guide JFHR8|UL Listed
- Brand: Mersen Ferraz Shawmut Chase FusesAmperage Rating: 150 AApplication: Protection of heavy duty devices such as electrochemical rectifiersCase: GMGConnection: BladeCountry of Origin: MXMounting: BoltedResponse Time: High-SpeedSize: 2.66 x 1.13 inSpecial Features: Low I²t minimizes damage to protected components on short circuit Controlled arc voltage reduces stress to circuit components during fuse clearing Choice of mounting types provides options for unique termination requirementsStandard: RoHS Compliant|UL 198L Parameters (1-4000A)|UL Listed File No. E60314 Guide JFHR8|UL ListedSub Brand: Amp-Trap®Type: Round Body High-Speed Fuse-Links AC ProtectionVoltage Rating: 150 V
