PS 2097-W
MFG #2097-W
UPC #78500703592
SKU #4101558
571 in Stock
Stock Item
More available 01/09/2026
$24.19 per EA (1) / EA
Product description

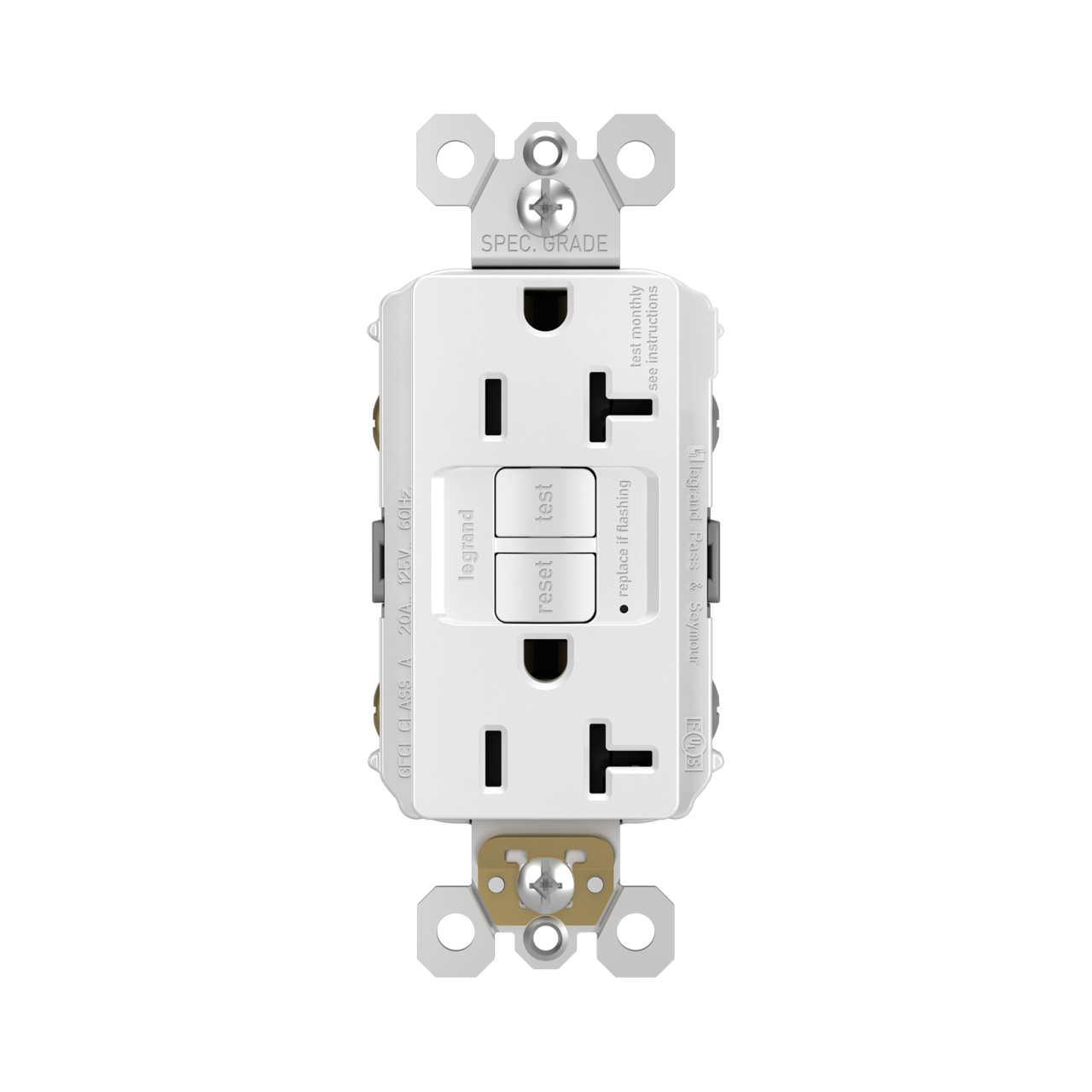

PS 2097-W 20AMP WHITE 125VAC NEMA5-20R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX GFCI RECEPTACLE SPECIFICATION GRADE
Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, White, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, White, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
- Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, White, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- RECEPTACLE GFCI 125VAC 20A 2 3 WHT
- Product Catalog Page(s)
Specification Sheet
- cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|UL 498/943|UL 94 V-2 Flammability Rated
- Brand: Pass & Seymour LegrandActuator: Control CircuitAmperage Rating: 20Application: Commercial/ResidentialConnection: Back and side wireCountry of Origin: CNEnvironmental Conditions: 95% Humidity, UL 94 V2Frequency Rating: 60 HzHeight: 4.2Interrupt Rating: 4 to 6 mALength: 1.03Material: ThermoplaticNEMA Rating: 20ANumber of Poles: Double PoleNumber Of Wires: 3Operating Temperature: -35°C to +66°CSpecial Features: Spec GradeStandard: CULUS, ULSub Brand: radiantTrip Range: 4 to 6 mATrip Type: .025 Second NominalType: OutletVoltage Rating: 125Width: 1.73
